Description
MTRQ-4S101 is a Four-Channel,Parallel,Fiber-Optic QSFP28 transceiver for 100G Base-SR4 Ethernet Applications.This transceiver is a high performance module for short-reach muti-lane data communication and interconnect applications.it integrates four data lanes in each direction with 103.125Gbps bandwidth.Each lane can operate 25.78125Gbps up to 70m OM3 or 100m OM4 fiber These module are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.The optical interface uses an 12 fiber MTP(MPO). connector
A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire QSFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area.Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
Features
l Support Data Rate 103.125Gbps
l Up to 70m OM3 和 100m OM4
l 4 channels 850nm VCSEL array
l 4 channels PIN photo detector array
l DDM function implemented
l Single MPO connector receptacle
l Hot Pluggable QSFP+ form factor
l Single +3.3V power supply
l Power consumption less than 3.5W
l Operating case temperature: 0〜+70°C
Applications
l 100GBASE-SR4 Ethernet
l Datacom/Telecom switch&router connections
l Data Aggregation and 巳ackplane Applicationgs
l Infiniband transmission at 4ch QDR,FDR and EDR
Compliance
l Compliant with SFF-8636 Rev 2.7
l Compliant with IEEE 802.3bm
l Compliant with IEEE 802.3bj
l Compliant with QSFP+ MSA
l GR-468-CORE
l RoHS compliance
Specification
Absolute Maximum Ratings | ||||
Parameter | Symbol | Min. | Max. | Unit |
Storage Temperature | TS | -40 | +85 | ℃ |
Supply Voltage | VCC3 | 0 | 3.6 | V |
Relative Humidity | RH | 5 | 95 | % |
Recommended Operating Conditions | ||||||
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Operating Case Temperature | TC | 0 | 70 | ℃ | ||
Power Supply Voltage | VCC3 | 3.13 | 3.3 | 3.47 | V | |
ICC3 | 1008 | mA | ||||
Power Dissipation | PD | 3.5 | W | |||
Data Rate | 103.125 | Gbps | ||||
Transmission Distance | 70 | m | OM3 | |||
100 | m | OM4 |
Transmitter Optical Characteristic | |||||||
Parameter | Symbol | Min. | Typical | Max. | Unit | Note | |
Center Wavelength | λC | 840 | 850 | 860 | nm | ||
RMS Spectral width | 0.6 | nm | |||||
Optical Power for TX DISABLE | - | - | -30 | dBm | |||
Average launch power, each lane | P | -8.4 | - | 2.4 | dBm | ||
Optical Modulation Amplitude (OMA), each lane | OMA | -6.4 | 3 | ||||
Launch power in OMA minus TDEC | -7.3 | ||||||
Extinction Ratio | ER | 2 | |||||
Signaling rate, each lane | 25.78125 | Gbps | |||||
Optical eye mask | Compliant with IEEE std 802.3bm-2015 | ||||||
Optical Return Loss Tolerance | - | - | 12 | dB |
Receiver Optical Characteristic | ||||||
Parameter | Symbo l | Min. | Typ. | Max. | Unit | Note |
Center Wavelength | λr | 840 | 850 | 860 | nm | |
Average Receiver Sensitivity(AVG, EOL) | dBm | |||||
Stressed Receiver Sensitivity(OMA、EOL) | -5.2 | dBm | ||||
Saturation power(EOL) | 2.4 | dBm | ||||
Max Input power | 3.4 | dBm | ||||
LOS Assert | LOS_A | -30 | - | dBm | ||
LOS Dessert | LOS_D | -13 | dBm | |||
LOS Hysteresis | 0.5 | - | dB | |||
Receiver Reflectance | -12 | dB | ||||
Signaling rate, each lane | 25.78125 | Gbps |
Electrical Characteristic | ||||||
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Input differential impedance | 100 | Ω | ||||
Differential data input swing | 180 | 700 | mV | |||
Differential data output swing | 900 | mV |
Control and Status I/O Timing Characteristics | ||||||
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Initialization time | t_init | 2000 | ms | |||
Reset Init Assert Time | t_reset_init | 2 | us | |||
Serial Bus Hardware Ready Time | t_serial | 2000 | ms | |||
Reset Assert Time | t_reset | 2000 | ms | |||
LPMode Assert Time | ton_LPMode | 100 | us | |||
LPMode Deassert Time | Toff_LPMode | 300 | ms | |||
IntL Assert Time | ton_IntL | 200 | ms | |||
IntL Deassert Time | toff_IntL | 500 | us | |||
Rx LOS Assert Time | ton_los | 100 | ms | |||
Tx Fault Assert Time | ton_Txfault | 200 | ms | |||
Flag Assert Time | ton_flag | 200 | ms | |||
Mask Assert Time | ton_mask | 100 | ms | |||
Mask Deassert Time | toff_mask | 100 | ms | |||
Power_overrideor Power_set Assert Time | ton_Pdown | 100 | ms | |||
Power_override or Power_set Deassert Time | toff_Pdown | 300 | ms |
Pin-out Definition
Figure1

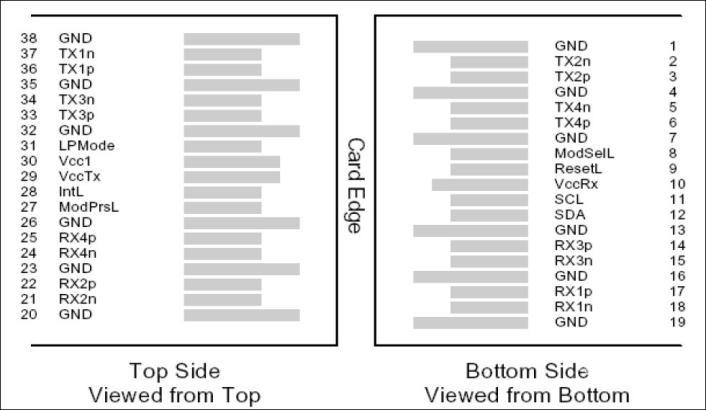

Pin Assignment
Pin | Name | Description | Notes |
1 | GND | Ground | Note1 |
2 | Tx2n | Transmitter Inverted Data Input | |
3 | Tx2p | Transmitter Non-Inverted Data Input | |
4 | GND | Ground | Note1 |
5 | Tx4n | Transmitter Inverted Data Input | |
6 | Tx4p | Transmitter Non-Inverted Data Input | |
7 | GND | Ground | |
8 | ModSelL | Module Select | |
9 | ResetL | Module Reset | |
10 | Vcc Rx | +3.3V Power Supply Receiver | Note2 |
11 | SCL | 2-wire serial interface clock | |
12 | SDA | 2-wire serial interface data | |
13 | GND | Ground | |
14 | Rx3p | Receiver Non-Inverted Data Output | |
15 | Rx3n | Receiver Inverted Data Output | |
16 | GND | Ground | Note1 |
17 | Rx1p | Receiver Non-Inverted Data Output | |
18 | Rx1n | Receiver Inverted Data Output | Note1 |
19 | GND | Ground | Note1 |
20 | GND | Ground | |
21 | Rx2n | Receiver Inverted Data Output | |
22 | Rx2p | Receiver Non-Inverted Data Output | |
23 | GND | Ground | |
24 | Rx4n | Receiver Inverted Data Output | |
25 | Rx4p | Receiver Non-Inverted Data Output | |
26 | GND | Ground | Note1 |
27 | ModPrsL | Module Present | |
28 | IntL | Interrupt | |
29 | VccTx | +3.3V Power supply transmitter | Note2 |
30 | Vcc1 | +3.3V Power supply | Note2 |
31 | LPMode | Low Power Mode | |
32 | GND | Ground | Note1 |
33 | Tx3p | Transmitter Non-Inverted Data Input | |
34 | Tx3n | Transmitter Inverted Data Input | |
35 | GND | Ground | Note1 |
36 | Tx1p | Transmitter Non-Inverted Data Input | |
37 | Tx1n | Transmitter Inverted Data Input | |
38 | GND | Ground | Note1 |
Notes:
[1] GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
[2] Vcc Rx, Vcc1 and VccTx are the receiver and transmitter power supplies and shall be applied concurrently.Recommended host board power supply filtering is shown in Figure 7. Vcc Rx Vcc1 and VccTx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500 mA.
Optical Interface Lanes and Assignment

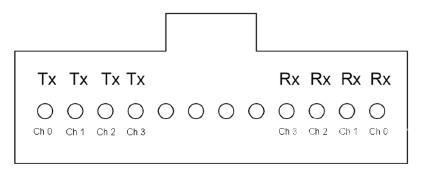

Figure 2 Optical lane assignment (front view of MPO receptacle)

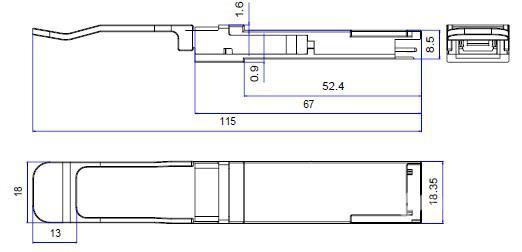

Figure3 Mechanical Package Outline
2-Wire Serial Address: 1010000x(A0H)

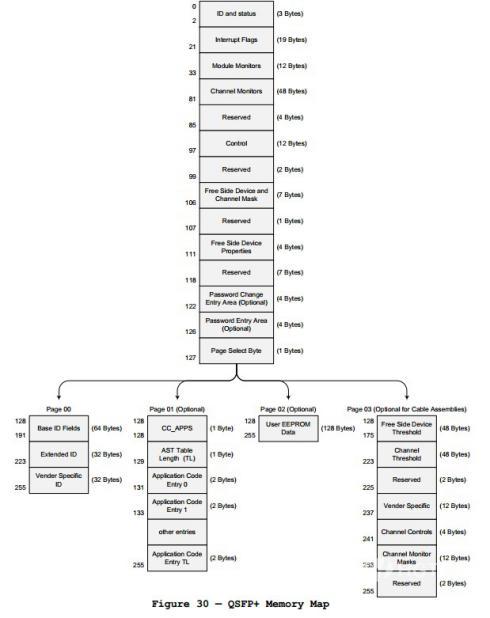

Lower Memory Map (A0h)
data address | Name | Description | Value (hex) | Read/Write | 备注 |
0 | Identifier | Identifier | 11 | Read-Only | QSFP28 |
1 | Status | Revision Compliance | 07 | Read-Only | 模块遵循的 SFF-8636 V2.7 |
2 | Status | * | Read-Only | Flat_mem、IntL、 Data_Not_Ready 标志 | |
3 | Interrupt Flags | L-Tx/RX LOS, channel 1~4 | * | Read-Only | |
4 | L-Tx/RX Adapt EQ Fault, channel 1~4 L-TX Fault, channel 1~4 | * | Read-Only | ||
5 | L-Tx/RX LOL, channel 1~4 | * | Read-Only | ||
6 | L-Temp High/Low Alarm/Warning Initialization complete flag | * | Read-Only | ||
7 | L-VCC High/Low Alarm/Warning | * | Read-Only | ||
8 | Vendor Specific | * | Read-Only | ||
9 | L-Rx Power High/Low Alarm/Warning, channel 1~2 | * | Read-Only | ||
10 | L-RxPower High/Low Alarm/Warning, channel 3~4 | * | Read-Only | ||
11 | L-Tx Bias High/Low Alarm/Warning, channel 1~2 | * | Read-Only | ||
12 | L-Tx Bias High/Low Alarm/Warning, channel 3~4 | * | Read-Only | ||
13 | L-Tx Power High/Low Alarm/Warning, channel 1~2 | * | Read-Only | ||
14 | L-Tx Power High/Low Alarm/Warning, channel 3~4 | * | Read-Only | ||
15 | Reserved | 00 | Read-Only | ||
16 | Reserved | 00 | Read-Only | ||
17 | Reserved | 00 | Read-Only | ||
18 | Reserved | 00 | Read-Only | ||
19 | Vendor Specific | * | Read-Only |
20 | Vendor Specific | * | Read-Only | ||
21 | Vendor Specific | * | Read-Only | ||
22 | Free Side Monitors | Internally measured temperature (MSB) | * | Read-Only | |
23 | Internally measured temperature (LSB) | * | Read-Only | ||
24 | Reserved | 00 | Read-Only | ||
25 | 00 | Read-Only | |||
26 | Internally measured supply voltage (MSB) | * | Read-Only | ||
27 | Internally measured supply voltage (LSB) | * | Read-Only | ||
28 | Reserved | 00 | Read-Only | ||
29 | 00 | Read-Only | |||
30 | Vendor Specific | 00 | Read-Only | ||
31 | 00 | Read-Only | |||
32 | 00 | Read-Only | |||
33 | 00 | Read-Only | |||
34 | Channel Monitors | Internally measured RX input power, channel 1 (MSB) | * | Read-Only | |
35 | Internally measured RX input power, channel 1 (LSB) | * | Read-Only | ||
36 | Internally measured RX input power, channel 2 (MSB) | * | Read-Only | ||
37 | Internally measured RX input power, channel 2 (LSB) | * | Read-Only | ||
38 | Internally measured RX input power, channel 3 (MSB) | * | Read-Only | ||
39 | Internally measured RX input power, channel 3 (LSB) | * | Read-Only | ||
40 | Internally measured RX input power, channel 4 (MSB) | * | Read-Only | ||
41 | Internally measured RX input power, channel 4 (LSB) | * | Read-Only | ||
42 | Internally measured TX | * | Read-Only |
bias, channel 1 (MSB) | |||||
43 | Internally measured TX bias, channel 1 (LSB) | * | Read-Only | ||
44 | Internally measured TX bias, channel 2 (MSB) | * | Read-Only | ||
45 | Internally measured TX bias, channel 2 (LSB) | * | Read-Only | ||
46 | Internally measured TX bias, channel 3 (MSB) | * | Read-Only | ||
47 | Internally measured TX bias, channel 3 (LSB) | * | Read-Only | ||
48 | Internally measured TX bias, channel 4 (MSB) | * | Read-Only | ||
49 | Internally measured TX bias, channel 4 (LSB) | * | Read-Only | ||
50 | Internally measured TX Power, channel 1 (MSB) | * | Read-Only | ||
51 | Internally measured TX Power, channel 1 (LSB) | * | Read-Only | ||
52 | Internally measured TX Power, channel 2 (MSB) | * | Read-Only | ||
53 | Internally measured TX Power, channel 2 (LSB) | * | Read-Only | ||
54 | Internally measured TX Power, channel 3 (MSB) | * | Read-Only | ||
55 | Internally measured TX Power, channel 3 (LSB) | * | Read-Only | ||
56 | Internally measured TX Power, channel 4 (MSB) | * | Read-Only | ||
57 | Internally measured TX Power, channel 4 (LSB) | * | Read-Only | ||
58 | Reserved channel monitor | 00 | Read-Only | ||
59 | 00 | Read-Only | |||
60 | 00 | Read-Only | |||
61 | 00 | Read-Only | |||
62 | 00 | Read-Only | |||
63 | 00 | Read-Only | |||
64 | 00 | Read-Only | |||
65 | 00 | Read-Only | |||
66 | Vendor Specific | 00 | Read-Only | ||
67 | 00 | Read-Only | |||
68 | 00 | Read-Only | |||
69 | 00 | Read-Only |
70 | 00 | Read-Only | |||
71 | 00 | Read-Only | |||
72 | 00 | Read-Only | |||
73 | 00 | Read-Only | |||
74 | 00 | Read-Only | |||
75 | 00 | Read-Only | |||
76 | 00 | Read-Only | |||
77 | 00 | Read-Only | |||
78 | 00 | Read-Only | |||
79 | 00 | Read-Only | |||
80 | 00 | Read-Only | |||
81 | 00 | Read-Only | |||
82 | Reserved | 00 | Read-Only | ||
83 | 00 | Read-Only | |||
84 | 00 | Read-Only | |||
85 | 00 | Read-Only | |||
86 | Control | Tx Disable, channel 1~4 | 00 | Read/Write | 默认值是 00 |
87 | Rx_Rate_select, channel 1~4 | 00 | Read/Write | 默认值是 00 | |
88 | Tx_Rate_select, channel 1~4 | 00 | Read/Write | 默认值是 00 | |
89 | Rx4_Application_Select, Rx Channel 4 | 00 | Read/Write | 默认值是 00 | |
90 | Rx3_Application_Select, Rx Channel 3 | 00 | Read/Write | 默认值是 00 | |
91 | Rx2_Application_Select, Rx Channel 2 | 00 | Read/Write | 默认值是 00 | |
92 | Rx1_Application_Select, Rx Channel 1 | 00 | Read/Write | 默认值是 00 | |
93 | Reserved High Power Class Enable Power set Power override | 00 | Read/Write | 默认值是 00 | |
94 | Tx4_Application_Select, Rx Channel 4 | 00 | Read/Write | 默认值是 00 | |
95 | Tx3_Application_Select, Rx Channel 3 | 00 | Read/Write | 默认值是 00 | |
96 | Tx2_Application_Select, Rx Channel 2 | 00 | Read/Write | 默认值是 00 | |
97 | Tx1_Application_Select, Rx Channel 1 | 00 | Read/Write | 默认值是 00 | |
98 | Tx/Rx_CDR_control, channel 1~4 | FF | Read/Write | QSFP28 内置 CDR,提供 CDR 控制功能,默认值是 |
FF,使能所有通道 CDR | |||||
99 | Reserved | 00 | Read/Write | 默认值是 00 | |
100 | Module and Channel Masks | Masking Bit for TX/RX LOS indicator, channel 1~4 | 00 | Read/Write | 默认值是 00 |
101 | Masking Bit for TX, Adaptive EQ fault indicator, channel 1~4 Masking Bit for TX Transmitter/Laser indicator, channel 1~4 | 00 | Read/Write | 默认值是 00 | |
102 | Masking Bit for TX/RX CDR Loss of Lock indicator, channel 1~4 | 00 | Read/Write | 默认值是 00 | |
103 | Masking Bit for Temperature alarm/warning | 00 | Read/Write | 默认值是 00 | |
104 | Masking Bit for Vcc alarm/warning | 00 | Read/Write | 默认值是 00 | |
105 | Vendor Specific | 00 | Read/Write | 默认值是 00 | |
106 | 00 | Read/Write | 默认值是 00 | ||
107 | Reserved | 00 | Read/Write | ||
108 | Free Side Device Properties | Propagation Delay MSB | 00 | Read-Only | |
109 | Propagation Delay LSB | 00 | Read-Only | ||
110 | Advanced Low Power Mode Far Side Managed Min Operating Voltage | 08 | Read-Only | 必须提供 | |
111 | Assigned for use by PCI Express | 00 | Read-Only | ||
112 | 00 | Read/Write | |||
113 | Reserved | 00 | Read/Write | ||
114 | 01 | Read/Write | |||
115 | 02 | Read/Write | |||
116 | 03 | Read/Write | |||
117 | 04 | Read/Write | |||
118 | 05 | Read/Write | |||
119 | Password Change Entry Area | 00 | Read/Write | 协议约定默认密码 | |
120 | 00 | Read/Write | |||
121 | 10 | Read/Write | |||
122
| 11 | Read/Write | |||
123 | Password Entry Area | 00 | Read/Write | ||
124 | 00 | Read/Write |
125 | 00 | Read/Write | |||
126 | 00 | Read/Write | |||
127 | Page Select Byte | Page Select | 00 | Read/Write | 默认值是 00 |
Upper Memory Map Page 00h
data address | Name | Description | Value (hex) | Read/Write | 备注 |
128 | Identifier | Identifier Type of serial Module | 11 | Read-Only | QSFP28 |
129 | Ext. Identifier | Extended Identifier of Serial Module | BB | Read-Only | 3.5W/No CLEI/TX_CDR/RX_CDR/ |
130 | Connector | Code for connector type | 0C | Read-Only | MPO 1x12 |
131 | Specification compliance | Code for electronic compatibility or optical compatibility | 80 | Read-Only | 使用 Byte192 扩展类型 |
132 | 00 | Read-Only | |||
133 | 00 | Read-Only | |||
134 | 00 | Read-Only | |||
135 | 00 | Read-Only | |||
136 | 00 | Read-Only | |||
137 | 00 | Read-Only | |||
138 | 00 | Read-Only | |||
139 | Encoding | Code for serial encoding algorithm | 05 | Read-Only | |
140 | BR, nominal | Nominal bit rate, units of 100 MBits/s | FF | Read-Only | > 25.0G,具体速率见 Byte222 扩展速率 |
141 | Extended rateselect Compliance | Tags for extended rate select compliance | 00 | Read-Only | |
142 | Length(SMF) | Link length supported for SMF fiber in km (note 1) | 00 | Read-Only | 不支持 SMF |
143 | Length(OM3 50 um) | Link length supported for EBW 50/125 um fiber (OM3), units of 2m | 23 | Read-Only | OM3 传输距离 70m |
144 | Length(OM2 50 um) | Link length supported for 50/125 um fiber (OM2), units of 1m | 00 | Read-Only | 只显示,不用于识别判断 |
145 | Length(OM1 62.5 um) | Link length supported for 62.5/125 um fiber (OM1), units of 1m | 00 | Read-Only | 只显示,不用于识别判断 |
146 | Length (Copper) | Link length of copper or active cable, units of 1 m (note 1)Link length supported for 50/125 um | 32 | Read-Only | OM4 传输距离 100m |
fiber (OM4), units of 2 m) when Byte 147 declares 850nm VCSEL | |||||
147 | Device tech | Device technology | 00 | Read-Only | |
148 | Vendor name | QSFP+ vendor name(ASCII) | 48 47 20 47 45 4E 55 49 4E 45 20 20 20 20 20 20 | Read-Only | HG GENUINE |
149 | Read-Only | ||||
150 | Read-Only | ||||
151 | Read-Only | ||||
152 | Read-Only | ||||
153 | Read-Only | ||||
154 | Read-Only | ||||
155 | Read-Only | ||||
156 | Read-Only | ||||
157 | Read-Only | ||||
158 | Read-Only | ||||
159 | Read-Only | ||||
160 | Read-Only | ||||
161 | Read-Only | ||||
162 | Read-Only | ||||
163 | Read-Only | ||||
164 | Extended Module | Extended Module codes for InfiniBand | 00 | Read-Only | Infiniband 类型,不使用 |
165 | Vendor OUI | QSFP+ vendor IEEE company ID | 00 | Read-Only | |
166 | 00 | Read-Only | |||
167 | 00 | Read-Only | |||
168 | Vendor PN | Part number provided by QSFP+ vendor(ASCII) | 4D | Read-Only | MTRQ-4S101 |
169 | 54 | Read-Only | |||
170 | 52 | Read-Only | |||
171 | 51 | Read-Only | |||
172 | 2D | Read-Only | |||
173 | 34 | Read-Only | |||
174 | 53 | Read-Only | |||
175 | 31 | Read-Only | |||
176 | 30 | Read-Only | |||
177 | 31 | Read-Only | |||
178 | 2D | Read-Only | |||
179 | 48 | Read-Only | |||
180 | 33 | Read-Only | |||
181 | 43 | Read-Only | |||
182 | 20 | Read-Only | |||
183 | 20 | Read-Only | |||
184 | Vendor rev | Revision level for part | 31 | Read-Only |
185 | number provided by vendor(ASCII) | 30 | Read-Only | ||
186 | Wave length or Copper cable Attenuation | Nominal laser wavelength (wavelength=value/20 in nm) or copper cable attenuation in dB at 2.5GHz (Adrs 186) and 5.0GHz (Adrs 187) | 42 | Read-Only | 中心波长 |
187 | 68 | Read-Only | |||
188 | Wavelength tolerance | Guaranteed range of laser wavelength(+/- value) from nominal wavelength.(wavelength Tol.=value/200 in nm) | 07 | Read-Only | |
189 | D0 | Read-Only | |||
190 | Max case temp. | Maximum case temperature in degrees C | 4B | Read-Only | |
191 | CC_BASE | Check code for base ID fields (addresses 128-190) | Checksum | Read-Only | |
192 | Link codes | Extended Specification Compliance Codes | 02 | Read-Only | 100GBASE-SR4 |
193 | Options | Rate Select, TX Disable, TX Fault, LOS, Warning indicators for: Temperature, VCC, RX power, TX Bias | 03 | Read-Only | |
194 | FB | Read-Only | |||
195 | 9A | Read-Only | |||
196 | Vendor SN | Serial number provided by vendor (ASCII) | * | Read-Only | |
197 | * | Read-Only | |||
198 | * | Read-Only | |||
199 | * | Read-Only | |||
200 | * | Read-Only | |||
201 | * | Read-Only | |||
202 | * | Read-Only | |||
203 | * | Read-Only | |||
204 | * | Read-Only | |||
205 | * | Read-Only | |||
206 | * | Read-Only | |||
207 | * | Read-Only | |||
208 | * | Read-Only | |||
209 | * | Read-Only | |||
210 | * | Read-Only | |||
211 | * | Read-Only | |||
212 | Date Code | Vendor’s manufacturing date code | * | Read-Only | |
213 | * | Read-Only | |||
214 | * | Read-Only | |||
215 | * | Read-Only |
216 | * | Read-Only | |||
217 | * | Read-Only | |||
218 | * | Read-Only | |||
219 | * | Read-Only | |||
220 | Diagnostic Monitoring Type | Indicates which types of diagnostic monitoring are implemented (if any) in the Module. Bit 1,0 Reserved | 00 | Read-Only | |
221 | Enhanced Options | Indicates which optional enhanced features are implemented in the Module. | 00 | Read-Only | |
222 | Extended Bit Rate | Extended Bit Rate | 67 | Read-Only | 25.78125G |
223 | CC_EXT | Check code for the Extended ID Fields (addresses 192-222) | Checksum | Read-Only | |
224 | Vendor Specific EEPROM | Vendor Specific ID | * | Read-Only | |
225 | * | Read-Only | |||
226 | * | Read-Only | |||
227 | * | Read-Only | |||
228 | * | Read-Only | |||
229 | * | Read-Only | |||
230 | * | Read-Only | |||
231 | * | Read-Only | |||
232 | * | Read-Only | |||
233 | * | Read-Only | |||
234 | * | Read-Only | |||
235 | * | Read-Only | |||
236 | * | Read-Only | |||
237 | * | Read-Only | |||
238 | * | Read-Only | |||
239 | * | Read-Only | |||
240 | * | Read-Only | |||
241 | * | Read-Only | |||
242 | * | Read-Only | |||
243 | * | Read-Only | |||
244 | * | Read-Only | |||
245 | * | Read-Only | |||
246 | * | Read-Only | |||
247 | * | Read-Only | |||
248 | * | Read-Only | |||
249 | * | Read-Only | |||
250 | * | Read-Only | |||
251 | * | Read-Only | |||
252 | * | Read-Only | |||
253 | * | Read-Only | |||
254 | * | Read-Only | |||
255 | * | Read-Only |
Upper Memory Map Page 01h
data address | Name | Description | Value (hex) | Read/Write | 备注 |
128 | Identifier | Identifier Type of serial Module | 11 | Read-Only | QSFP28 |
129 | Ext. Identifier | Extended Identifier of Serial Module | BB | Read-Only | 3.5W/No CLEI/TX_CDR/RX_CDR/ |
130 | Connector | Code for connector type | 0C | Read-Only | MPO 1x12 |
131 | Specification compliance | Code for electronic compatibility or optical compatibility | 80 | Read-Only | 使用 Byte192 扩展类型 |
132 | 00 | Read-Only | |||
133 | 00 | Read-Only | |||
134 | 00 | Read-Only | |||
135 | 00 | Read-Only | |||
136 | 00 | Read-Only | |||
137 | 00 | Read-Only | |||
138 | 00 | Read-Only | |||
139 | Encoding | Code for serial encoding algorithm | 05 | Read-Only | |
140 | BR, nominal | Nominal bit rate, units of 100 MBits/s | FF | Read-Only | > 25.0G,具体速率见 Byte222 扩展速率 |
141 | Extended rateselect Compliance | Tags for extended rate select compliance | 00 | Read-Only | |
142 | Length(SMF) | Link length supported for SMF fiber in km (note 1) | 00 | Read-Only | 不支持 SMF |
143 | Length(OM3 50 um) | Link length supported for EBW 50/125 um fiber (OM3), units of 2m | 23 | Read-Only | OM3 传输距离 70m |
144 | Length(OM2 50 um) | Link length supported for 50/125 um fiber (OM2), units of 1m | 00 | Read-Only | 只显示,不用于识别判断 |
145 | Length(OM1 62.5 um) | Link length supported for 62.5/125 um fiber (OM1), units of 1m | 00 | Read-Only | 只显示,不用于识别判断 |
146 | Length (Copper) | Link length of copper or active cable, units of 1 m (note 1)Link length supported for 50/125 um | 32 | Read-Only | OM4 传输距离 100m |
fiber (OM4), units of 2 m) when Byte 147 declares 850nm VCSEL | |||||
147 | Device tech | Device technology | 00 | Read-Only | |
148 | Vendor name | QSFP+ vendor name(ASCII) | 48 47 20 47 45 4E 55 49 4E 45 20 20 20 20 20 20 | Read-Only | HG GENUINE |
149 | Read-Only | ||||
150 | Read-Only | ||||
151 | Read-Only | ||||
152 | Read-Only | ||||
153 | Read-Only | ||||
154 | Read-Only | ||||
155 | Read-Only | ||||
156 | Read-Only | ||||
157 | Read-Only | ||||
158 | Read-Only | ||||
159 | Read-Only | ||||
160 | Read-Only | ||||
161 | Read-Only | ||||
162 | Read-Only | ||||
163 | Read-Only | ||||
164 | Extended Module | Extended Module codes for InfiniBand | 00 | Read-Only | Infiniband 类型,不使用 |
165 | Vendor OUI | QSFP+ vendor IEEE company ID | 00 | Read-Only | |
166 | 00 | Read-Only | |||
167 | 00 | Read-Only | |||
168 | Vendor PN | Part number provided by QSFP+ vendor(ASCII) | 4D | Read-Only | MTRQ-4S101 |
169 | 54 | Read-Only | |||
170 | 52 | Read-Only | |||
171 | 51 | Read-Only | |||
172 | 2D | Read-Only | |||
173 | 34 | Read-Only | |||
174 | 53 | Read-Only | |||
175 | 31 | Read-Only | |||
176 | 30 | Read-Only | |||
177 | 31 | Read-Only | |||
178 | 2D | Read-Only | |||
179 | 48 | Read-Only | |||
180 | 33 | Read-Only | |||
181 | 43 | Read-Only | |||
182 | 20 | Read-Only | |||
183 | 20 | Read-Only | |||
184 | Vendor rev | Revision level for part | 31 | Read-Only |
185 | number provided by vendor(ASCII) | 30 | Read-Only | ||
186 | Wave length or Copper cable Attenuation | Nominal laser wavelength (wavelength=value/20 in nm) or copper cable attenuation in dB at 2.5GHz (Adrs 186) and 5.0GHz (Adrs 187) | 42 | Read-Only | 中心波长 |
187 | 68 | Read-Only | |||
188 | Wavelength tolerance | Guaranteed range of laser wavelength(+/- value) from nominal wavelength.(wavelength Tol.=value/200 in nm) | 07 | Read-Only | |
189 | D0 | Read-Only | |||
190 | Max case temp. | Maximum case temperature in degrees C | 4B | Read-Only | |
191 | CC_BASE | Check code for base ID fields (addresses 128-190) | Checksum | Read-Only | |
192 | Link codes | Extended Specification Compliance Codes | 02 | Read-Only | 100GBASE-SR4 |
193 | Options | Rate Select, TX Disable, TX Fault, LOS, Warning indicators for: Temperature, VCC, RX power, TX Bias | 03 | Read-Only | |
194 | FB | Read-Only | |||
195 | 9A | Read-Only | |||
196 | Vendor SN | Serial number provided by vendor (ASCII) | * | Read-Only | |
197 | * | Read-Only | |||
198 | * | Read-Only | |||
199 | * | Read-Only | |||
200 | * | Read-Only | |||
201 | * | Read-Only | |||
202 | * | Read-Only | |||
203 | * | Read-Only | |||
204 | * | Read-Only | |||
205 | * | Read-Only | |||
206 | * | Read-Only | |||
207 | * | Read-Only | |||
208 | * | Read-Only | |||
209 | * | Read-Only | |||
210 | * | Read-Only | |||
211 | * | Read-Only | |||
212 | Date Code | Vendor’s manufacturing date code | * | Read-Only | |
213 | * | Read-Only | |||
214 | * | Read-Only | |||
215 | * | Read-Only |
216 | * | Read-Only | |||
217 | * | Read-Only | |||
218 | * | Read-Only | |||
219 | * | Read-Only | |||
220 | Diagnostic Monitoring Type | Indicates which types of diagnostic monitoring are implemented (if any) in the Module. Bit 1,0 Reserved | 00 | Read-Only | |
221 | Enhanced Options | Indicates which optional enhanced features are implemented in the Module. | 00 | Read-Only | |
222 | Extended Bit Rate | Extended Bit Rate | 67 | Read-Only | 25.78125G |
223 | CC_EXT | Check code for the Extended ID Fields (addresses 192-222) | Checksum | Read-Only | |
224 | Vendor Specific EEPROM | Vendor Specific ID | * | Read-Only | |
225 | * | Read-Only | |||
226 | * | Read-Only | |||
227 | * | Read-Only | |||
228 | * | Read-Only | |||
229 | * | Read-Only | |||
230 | * | Read-Only | |||
231 | * | Read-Only | |||
232 | * | Read-Only | |||
233 | * | Read-Only | |||
234 | * | Read-Only | |||
235 | * | Read-Only | |||
236 | * | Read-Only | |||
237 | * | Read-Only | |||
238 | * | Read-Only | |||
239 | * | Read-Only | |||
240 | * | Read-Only | |||
241 | * | Read-Only | |||
242 | * | Read-Only | |||
243 | * | Read-Only | |||
244 | * | Read-Only | |||
245 | * | Read-Only | |||
246 | * | Read-Only | |||
247 | * | Read-Only | |||
248 | * | Read-Only | |||
249 | * | Read-Only | |||
250 | * | Read-Only | |||
251 | * | Read-Only | |||
252 | * | Read-Only | |||
253 | * | Read-Only | |||
254 | * | Read-Only | |||
255 | * | Read-Only |
数字诊断精度要求 DDM accuracy requirements | ||
Parameters | Unit | Requirements |
温度/ temperature | ℃ | ±3 |
电压/ voltage | V | ±3% |
偏置电流/ Ibias | mA | ±10% |
接收光功率/ Rx power | dB | ±3 |
发送光功率/ Tx power | dB | ±3 |
Part No | Specification | ||||||||
Pack | Rate | Tx | Pout | Rx | S | Top | Reach | Others | |
MTRQ-4S101 | QSFP28 | 100G | 850nm VCSEL | -8.4~2.4 dBm | PIN | <-10.3 dBm | 0~70℃ | 70 m (OM3) | DDM/RoHS |
Contact Information
Wuhan Huagong Genuine Optics Technology Co., Ltd
Address: Science & Technology Region of HUST, Donghu High-Tech Zone
Wuhan, Hubei Province, 430223, China
l Tel: +86-27-87180102
l Fax: +86-27-87180220
Email: market@genuine-opto.com
Website: http://www.genuine-opto.com
HG Genuine possesses the authority for ultimate explanation of all information contained in this document, which is subject to change without prior notice. All the information was obtained in specific environments; and HG Genuine will not be responsible for verifying the products performance in customers’ operating environments, neither liable for the performance of users' products. All information contained is only for the users' reference and shall not be considered as warranted characteristics. HG Genuine will not be liable for damages arising directly or indirectly from any use of the information contained in this document.
Publishing Date: 2016-05-20
Copyright Ó HG Genuine
All Right Reserved
