Description

The HG Genuine PNGS1-01A transceiver consists 1270nm DFB laser, 1577nm APD photodiode WDM filter and Preamplifier in a high-integrated optical sub-assembly for 2.5G upstream and 10G downstream XGPON applications up to 20km. The optical interface is SC/UPC receptacle. It adopts SFP+ Package. Power supply is single +3.3 Voltage.


Features

SFP+ Package.

Single Power Supply +3.3 Voltage.

Sleep Mode compliance

Single Fiber Bi-Directional SC/UPC receptacle.

Burst-Mode Transmitter, operation wavelength at 1270nm, 2.5Gbps

Continuous-Mode Receiver, operation wavelength at 1577nm, 9.953Gbps

SFP electrical interface

2-wire interface for integrated Digital Diagnostic monitoring

Operating temperature range: -40 °C ~+85 °C


Applications

10 Gigabit PON ONU for P2MP application



Compliance

Compliant with G.987.2

Compliant with IEC60825 Class 1

RoHS compliance



Specification

Absolute Maximum Ratings

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Storage Temperature

TSTG

-40


85

ºC


Operating Relative Humidity


5


95

%


Supply Voltage

VCC

-0.5


4

V




Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Case Operation Temperature

Ta

-40


85

ºC


 Supply Voltage

VCC

3.135

3.3

3.465

V


 Module Power Dissipation

P



1.5

W




Tested under recommended operating conditions, unless otherwise noted

Transmitter Operating Characteristic-Optical,Electrical

Parameter

Symbol

Min

Typical

Max

Units

Notes


 Data Rate

BR


2.488


Gb/s



Transmitter differential input voltage


200

-

1600

mV



Tx burst input

VOH

2.0

-

Vcc

V

LVTTL


VOL

0

-

0.8

LVTTL


Tx _SD Voltage

VOH

2.4

-

Vcc

V

LVTTL


VOL

0

-

0.4

LVTTL


 Center Wavelength

λC

1260

1270

1280

nm



 Optical Power Output

BOL

PO


NA


dBm



EOL

2


7



 Spectral Width@-20dB

Δλ



1

nm



 Side Mode Suppression Ratio

SMSR

30

-

-

dB



Extinction Ratio

ER

8.2



dB



Output Optical Eye

Compliant with IEEE 802.3av

Average launch power of OFF transmitter

Poff



-45

 dBm

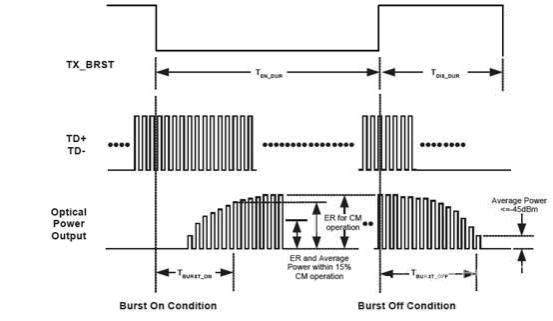

Optical Burst On Time

Ton



12.8

ns



Optical Burst Off Time

Toff



12.8

ns



Tx_indication assert

Tindi-on



1000

ns



Tx_indication deassert

Tindi-off



1000

ns





Receiver Operating Characteristic-Optical,Electrical

Parameter

Symbol

Min

Typical

Max

Units

Notes

Data Rate

BR


9.953


Gb/s


Receiver differential output voltage


300

-

850

mV


Rx _LOS Voltage

VOH

VOL

2.4

-

Vcc

V

LVTTL

0

-

0.4

LVTTL

Sensitivity

BOL

Rx sens

-

NA

-

dBm

 1

EOL

-

-

-28

Maximum Overload Power

Rx OVERLOAD

-8

-

-

dBm


Maximum Input Power

Rx max

0



dBm


Input Operating Wavelength

λRX

1575

1577

1580

nm


Optical reflectance

RRX

-

-

-20

dB

λ=1577nm

Rx_LOS Assert

PA

-44

-

-

dBm


Rx_LOS Deassert

PD

-

-

-28.5

dBm


Hysteresis

PA - PD

0.5

2.5

6

dB


Notes:

[1]Measured with PRBS= 2^31-1 test pattern @9.953Gbps with Tx on, ER=8.2dB, BER=10^-3.

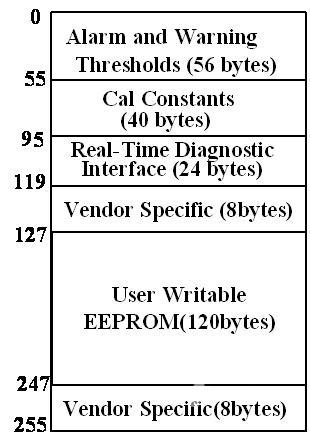

Digital Diagnostic Memory Map

2 wire address 1010000X (A0)                  2 wire address 1010001X (A2)

图片6.jpg     图片7.jpg

Figure1

EEPROM Serial ID Memory Contents

Accessing Serial ID Memory uses the 2 wire address 1010000X (A0). Memory Contents of Serial ID are shown in Table 1

Table 1 Serial ID Memory Contents

Data Address

Size (Bytes)

Name of Field

Contents(Hex)

Description

BASE ID FIELDS

0

1

Identifier

03

SFP

1

1

Ext. Identifier

04

SFP function is defined by serial ID only

2

1

Connector

01

SC Connector

3-10

8

Transceiver

0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00


11

1

Encoding

03

NRZ

12

1

BR, Nominal

19

2488bps

13

1

Reserved

00


14

1

Length (9μm) km

14

20km

15

1

Length (9μm) 100m

C8

20km

16

1

Length (50μm) 10m

00


17

1

Length(62.5μm)10m

00


18

1

Length (Copper)

00

Not compliant

19

1

Reserved

00


20-35

16

Vendor name

48 47 20 47 45 4E 55 49 4E 45 20 20 20 20 20 20

“HG GENUINE” (ASCII)

36

1

Reserved

00


37-39

3

Vendor OUI

00 00 00


40-55

16

Vendor PN

50 4E 47 53 31 2D 30 31  41 20 20 20 20 20 20 20

PNGS1-01A” (ASCII)

56-59

4

Vendor rev

00 00 00 00


60-61

2

Wavelength

04 F6

Transceiver wavelength

62

1

Reserved

00


63

1

CC_BASE

Check Sum (Variable)

Check code for Base ID Fields

EXTENDED ID FIELDS

64-65

2

Options

00 0C

Soft TX_FAULT,RX_LOS

implemented

66

1

BR, max

00


67

1

BR, min

00


68-83

16

Vendor SN

30 30 34 39 34 39 30 35

20 20 20 20 20 20 20 20

Serial Number of transceiver

(ASCII). For example “00494905”.

84-91

8

Date code

31 36 30 35 30 35 20 20

Manufactory date code. For example “160505”.

92

1

Diagnostic

Monitoring Type

68

Compliant with SFF-8472 V10.2

internally Calibrated Received power measurement type: Average Power

93

1

Enhanced Options

B0

Optional Alarm/Warning flags implemented for all monitored quantities, Optional Soft TX_FAULT monitoring implemented, Optional Soft RX_LOS monitoring implemented.

94

1

SFF_8472 Compliance

03

Diagnostics Compliance(SFF-8472 V10.2)

95

1

CC_EXT

Check Sum (Variable)

Check sum for Extended ID Field.

VENDOR SPECIFIC ID FIELDS

96-127

32

Vendor Specific

Read only

Depends on customer information



Diagnostic Monitor Functions

Diagnostic Monitor Functions interface uses the 2 wire address 1010001X (A2). Memory contents of Diagnostic Monitor Functions are shown in Table 2.

Table 2 Memory contents of Diagnostic Monitor Function

Data Address

Field Size (bytes)

Name

Contents and Description

Alarm and Warning Thresholds

00-01

2

Temperature High Alarm

MSB at low address,90

02-03

2

Temperature Low Alarm

MSB at low address,-45

04-05

2

Temperature High Warning

MSB at low address,85

06-07

2

Temperature Low Warning

MSB at low address,-40

08-09

2

Vcc High Alarm

MSB at low address,3.63V

10-11

2

Vcc Low Alarm

MSB at low address,2.97V

12-13

2

Vcc High Warning

MSB at low address,3.47V

14-15

2

Vcc Low Warning

MSB at low address,3.13V

16-17

2

Bias High Alarm

MSB at low address

18-19

2

Bias Low Alarm

MSB at low address

20-21

2

Bias High Warning

MSB at low address

22-23

2

Bias Low Warning

MSB at low address

24-25

2

TX Power High Alarm

MSB at low address,8dBm

26-27

2

TX Power Low Alarm

MSB at low address,1dBm

28-29

2

TX Power High Warning

MSB at low address,7dBm

30-31

2

TX Power Low Warning

MSB at low address,2dBm

32-33

2

RX Power High Alarm

MSB at low address,-7dBm

34-35

2

RX Power Low Alarm

MSB at low address,-29dBm

36-37

2

RX Power High Warning

MSB at low address,-8dBm

38-39

2

RX Power Low Warning

MSB at low address,-28dBm

40-55

16

Reserved


Calibration Constants

56-59

4

RX Power Calibration Data4

00 00 (fixed)

60-63

4

RX Power Calibration Data3

00 00 (fixed)

64-67

4

RX Power Calibration Data2

00 00 (fixed)

68-71

4

RX Power Calibration Data1

00 01 (fixed)

72-75

4

RX Power Calibration Data0

00 00 (fixed)

76-77

2

Bias Calibration Data1

00 01 (fixed)

78-79

2

Bias Calibration Data0

00 00 (fixed)

80-81

2

TX Power Calibration Data1

00 01 (fixed)

82-83

2

TX Power Calibration Data0

00 00 (fixed)

84-85

2

Temperature Calibration Data1

00 01 (fixed)

86-87

2

Temperature Calibration Data0

00 00 (fixed)

88-89

2

VCC Calibration Data1

00 01 (fixed)

90-91

2

VCC Calibration Data0

00 00 (fixed)

92-94

3

Reserved

00 00 00 (fixed)

95

1

Check Sum

Checksum of bytes 0-94

Real Time Diagnostic Monitor Interface

96-97

2

Measured Temperature

Yield a 16-bit A/D value (see Table 2.1)

98-99

2

Measured Vcc

Yield a 16-bit A/D value (see Table 2.1)

100-101

2

Measured Bias

Yield a 16-bit A/D value (see Table 2.1)

102-103

2

Measured TX Power

Yield a 16-bit A/D value (see Table 2.1)

104-105

2

Measured RX Power

Yield a 16-bit A/D value (see Table 2.1)

106-109

4

Reserved


110

1

Logic Status

See Table 2.2

111

1

Reserved


112-119

8

Alarm and Warning Flags

See Table 2.3

Vendor Specific

120-127

8

Vendor Specific

Vendor Specific

128-247

120

User writable EEPROM

User writable EEPROM

248-255

8

Vendor Specific

Don’t Access

 The measured values located at bytes 96-105(in the 2 wire address 0xA2) are raw A/D values (16-bit integers) of transceiver temperature, supply voltage, laser bias current, laser optical output power and received power. All the measured values are “Externally Calibrated”, and then it is necessary to convert raw A/D values to real world units by the manner as shown in Table 2.1.



Table 2.1 Real Time Diagnostic Monitor Values

Byte

Name

Description

96

Temperature MSB

Internally measured transceiver temperature. Compliant with External Calibration of SFF-8472.

97

Temperature LSB

98

VCC MSB

Internally measured supply voltage. Compliant with External Calibration of SFF-8472.

99

VCC LSB

100

Laser Bias MSB

Measured Laser bias current. Compliant with External Calibration of SFF-8472.

101

Laser Bias LSB

102

Tx Power MSB

Measured Tx power. Compliant with External Calibration of SFF-8472.

103

Tx Power LSB

104

Rx Power MSB

Measured Tx power. Compliant with External Calibration of SFF-8472.

105

Rx Power LSB

 This transceiver implements one optional status bytes, “Logic States” at byte 110 as shown in Table 2.2.

Table 2.2 Logic Status and AD Conversion Updates

Byte

Bit

Name

Description

110

7

Reserved

Reserved

110

6

Reserved

Reserved

110

5

Reserved

Reserved

110

4

Reserved

Reserved

110

3

Reserved

Reserved

110

2

Tx Fault

Optional digital state of the Tx Fault output pin.

110

1

RX_LOS

Optional digital state of the RX_LOS output pin.

110

0

Reserved

Reserved



Each of the measured values has a corresponding high alarm, low alarm, high warning and low warning threshold level at location 00-39(x0A2) written as the data format of a corresponding valued shown in Table 2.3.Alarm and warning flags at bytes 112-119(0xA2) are defined as follows.

[1] Alarm flags indicate conditions likely to result (or have resulted) in link failure and cause for immediate action.

[2] Warning flags indicate conditions outside the guaranteed operating specification of transceiver but not necessarily causes of immediate link failures.

Table 2.3 Alarm and Warning Flags

Byte

Bit(s)

Name

Description

112

7

Temperature High Alarm

Set when temperature monitor value exceeds high alarm level.

112

6

Temperature Low Alarm

Set when temperature monitor value exceeds low alarm level.

112

5

Vcc High Alarm

Set when Vcc monitor value exceeds high alarm level.

112

4

Vcc Low Alarm

Set when Vcc monitor value exceeds Low alarm level.

112

3

Laser Bias High Alarm

Set when laser bias monitor value exceeds high alarm level.

112

2

Laser Bias Low Alarm

Set when laser bias monitor value exceeds low alarm level.

112

1

Tx Power High Alarm

Set when Tx power monitor value exceeds high alarm level

112

0

Tx Power Low Alarm

Set when Tx power monitor value exceeds low alarm level.

113

7

Rx Power High Alarm

Set when Rx power monitor value exceeds high alarm level

113

6

Rx Power Low Alarm

Set when Rx power monitor value exceeds low alarm level

113

5-0

Reserved

All bits set to 0.

114

7-0

Reserved

All bits set to 0.

115

7-0

Reserved

All bits set to 0.

116

7

Temperature High warning

Set when temperature monitor value exceeds high warning level.

116

6

Temperature Low warning

Set when temperature monitor value exceeds low warning level.

116

5

Vcc High warning

Set when Vcc monitor value exceeds high warning level.

116

4

Vcc Low warning

Set when Vcc monitor value exceeds Low warning level.

116

3

Laser Bias High warning

Set when laser bias monitor value exceeds high warning level.

116

2

Laser Bias Low warning

Set when laser bias monitor value exceeds low warning level.

116

1

Tx Power High warning

Set when Tx power monitor value exceeds high warning level

116

0

Tx Power Low warning

Set when Tx power monitor value exceeds low warning level.

117

7

Rx Power High warning

Set when Rx power monitor value exceeds high warning level

117

6

Rx Power Low warning

Set when Rx power monitor value exceeds low warning level

117

5-0

Reserved

All bits set to 0.

118

7-0

Reserved

All bits set to 0.

119

7-0

Reserved

All bits set to 0.



Internal Calibration

Measurements stored in data address byte 96~ 105 are calibrated over transceiver operating temperature and supply voltage and are interpreted as defined in SFF-8472 Rev9.5. Alarm and warning threshold values should be interpreted in the same manner as real time 16 bit data.



External Calibration

Measurements are raw A/D values and must be converted to real world units using calibration constants stored in EEPROM locations 56 – 95 at 2 wire serial bus address A2h. Calibration is valid over transceiver operating temperature and voltage.

Alarm and warning threshold values should be interpreted in the same manner as real time 16 bit data.

After calibration per the equations given below for each variable as described in SFF-8472 Rev9.5, the results are consistent with the accuracy and resolution goals for internally calibrated devices.

Internally measured transceiver temperature. Temperature, T (oC), is given by



T = TSLOPE * TAD + TOFFSET



Where TAD is 16-bit signed 2's complement A/D value at bytes 96-97, TSLOPE is unsigned fixed-point value

at bytes 84-85 and TOFFSET is signed 2's complement value with LSB equal to 1/256 deg-C at bytes 86-87.

The result, T, is 16-bit signed 2's complement value with LSB equal to 1/256 OC, yielding a total range of

-128 OC to +128 OC.



Internally measured supply voltage: Voltage, V (µV), is given by



V = VSLOPE * VAD + VOFFSET



Where VAD is 16-bit unsigned A/D value at bytes 98-99, VSLOPE is unsigned fixed-point value at bytes 88-89 and VOFFSET is signed 2's complement value with LSB equal to 100 µV at bytes 90-91. The result, V, is 16-bit unsigned value with LSB equal to 100 µV, yielding a total range of 0-6.55V.



Measured transmitter laser bias current: Current (µA), I, is given by



I = ISLOPE* IAD + IOFFSET



Where IAD is 16-bit unsigned A/D value at bytes 100-101, ISLOPE is unsigned fixed-point value at bytes

76-77 and IOFFSET is signed 2's complement value with LSB equal to 2 µA at bytes 78-79. The result, I, is

16-bit unsigned value with LSB equal to 2 µA, yielding a total range of 0-131mA.



Measured coupled TX optical output power: Power, TX_P (µW), is given by



TX_P = TX_PSLOPE * TX_PAD + TX_POFFSET



Where TX_PAD is 16-bit unsigned A/D value at bytes 102-103, TX_PSLOPE is unsigned fixed-point value at

bytes 80-81 and TX_POFFSET is signed 2's complement value with LSB equal to 0.1 µW at bytes 82-83. The

result, TX_P, is 16-bit unsigned value with LSB equal to 0.1 µW, yielding a total range of 0-6.5mW.



Measured received optical power: Power, RX_P (µW), is given by



RX_P = R4 * RX_PAD4 + R3 * RX_PAD3 + R2 * RX_PAD2+ R1 * RX_PAD + R0

Where RAD is 16-bit unsigned A/D value at bytes 104-105 and R4, R3, R2, R1 and R0 are single precision

floating-point values at bytes 56-75. The maximum value for R4, R3, R2, R1 and R0 is 1e8. The result,

RX_P, is 16-bit unsigned value with LSB equal to 0.1 µW, yielding a total range of 0-6.5mW.



Digital Diagnostic Monitor Accuracy


Parameter

Range

Actual Value

Calibration Option

Note

Transceiver Temperature

-40~85

±3

Internal calibration

Recommended

Operating Conditions

Power Supply Voltage

3.0-3.6V

±3%

Internal calibration

Recommended

Operating Conditions

Tx Bias Current

0~100mA

±10%

Internal calibration

Recommended

Operating Conditions

Tx BM Optical Power

2~7dBm

±3dB

Internal calibration

Recommended

Operating Conditions

Rx Optical Power

-29~-8dBm

±3dB

Internal calibration

Recommended

Operating Conditions

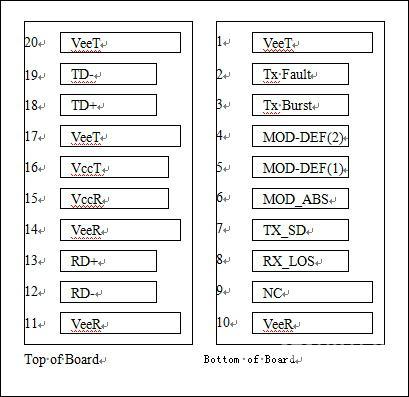

 Pin-out Description


Figure2


Pin Assignment


Pin

Name

Description

1

VeeT

Transmitter Ground

2

TX Fault

Transmitter Fault Indication

3

TX Burst

Transmitter Burst

4

MOD-DEF2

2 wire serial ID interface, SDA

5

MOD-DEF1

2 wire serial ID interface, SCL

6

MOD_ABS

Module Absent, Grounded in Module

7

TX_SD

Tx Transmitter State Indication, TX_Indication Assert When Transmitter ON

8

RX_LOS

Loss of Signal

9

NC

NC

10

VeeR

Receiver Ground

11

VeeR

Receiver Ground

12

RD-

Inv. Received Data Out,. AC couled.

13

RD+

Received Data Out. AC couled.

14

VeeR

Receiver Ground

15

VccR

Receiver Power

16

VccT

Transmitter Power

17

VeeT

Transmitter Ground

18

TD+

Transmit Data In. AC-coupled, differential lines with 100Ω differential termination inside the module

19

TD-

Inv. Transmit Data In. AC-coupled, differential lines with 100Ω differential termination inside the module

20

VeeT

Transmitter Ground

Function Description

The transceiver provides high-speed Bi-directional serial optical link for XGPON 10G downstream and 2.5G upstream application up to 20km.

The burst-mode transmitter part has a 1270 nm DFB laser. It features ac-coupled differential data inputs. TX_BRST is a LVTTL input for TX shut down control. Logic “1” disables the LD driver.

The 1577nm continuous-mode receiver part has a high performance photo detector. The preamplifier (TIA) and limiting amplifier amplify the incoming optical signal into the stable range and convert the signal to differential ac-coupled outputs. RX_LOS is LVTTL output, which logic “1” indicates the input power is lower than the threshold, logic “0” indicates the input power is above the threshold.


Burst Mode Sequence

Tx Burst control: Logic 0 Tx ON


Figure3

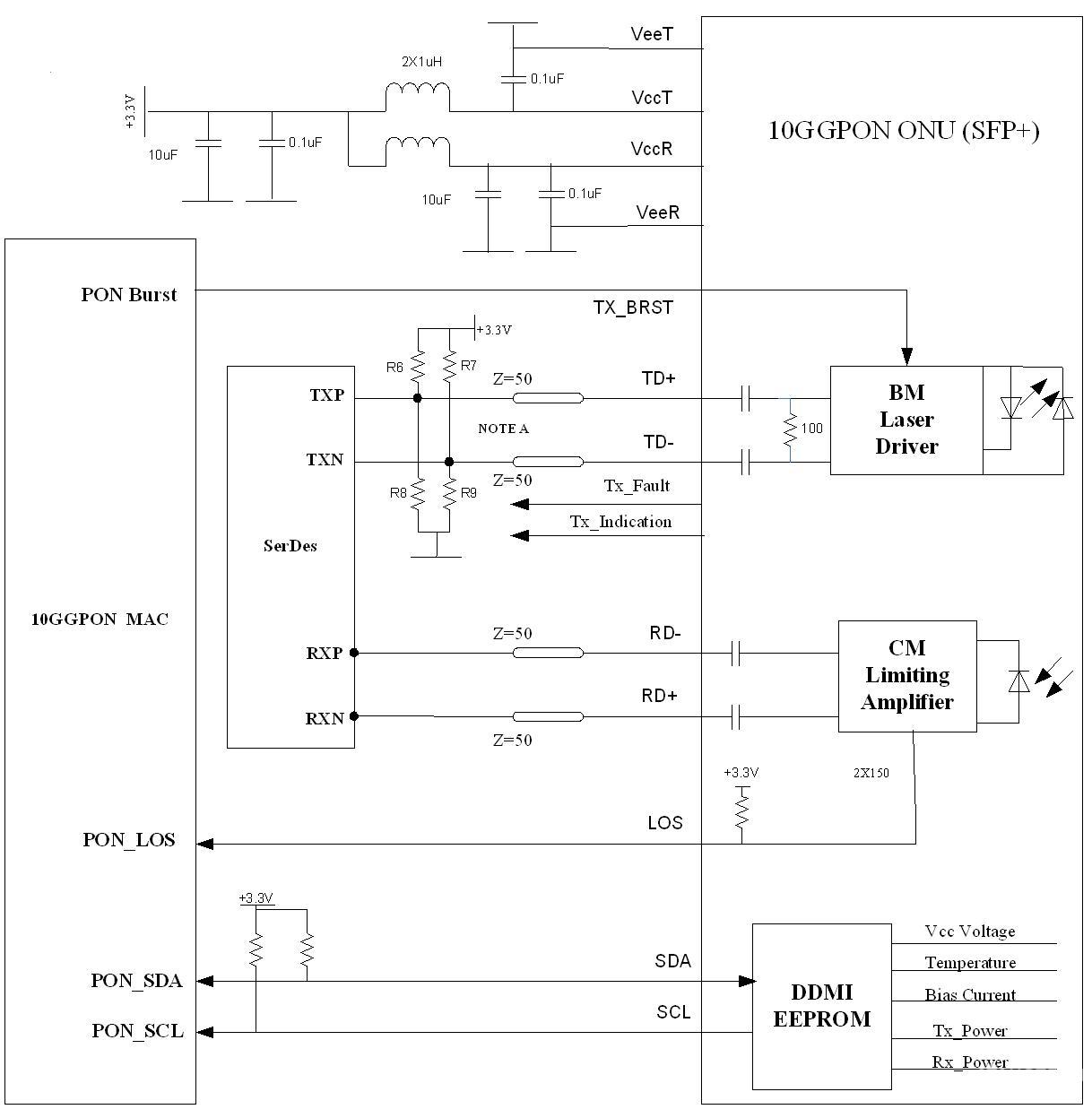

Interface Circuit


Figure4

Note A: AC coupled internally.  R6=R7=N.C, R8=R9=150Ω.

Note B:  CML output. AC coupled internally.

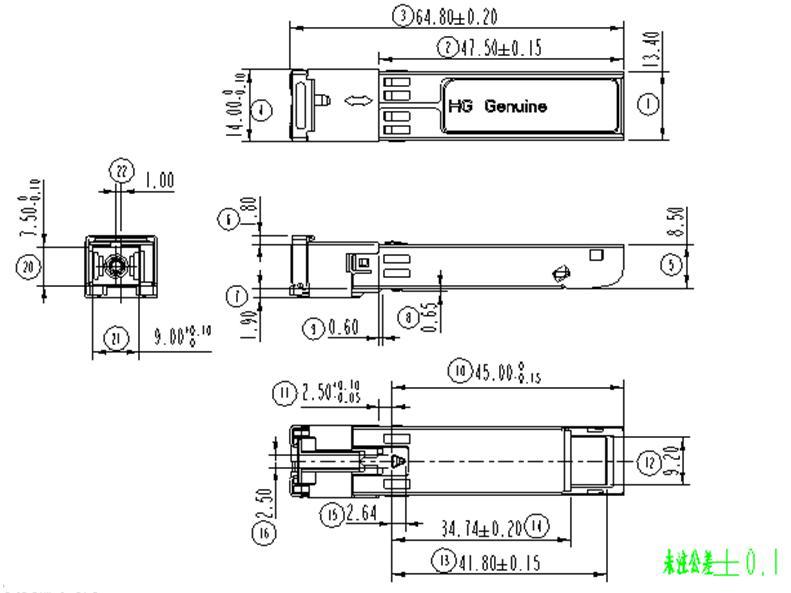

Figure Dimensions


Figure5


Ordering Information

Part No.

Specification

Application

Pack

Rate

Tx

Pout

Rx

S

Top

Reach

Others

PNGS1-01A

SFP+

2.5Gb/s U

9.953Gb/s D

1270nm DFB

+2+7dBm

APD

  <-28dBm

-40~85℃

20km

0Tx ON

XGPON













Contact Information

Wuhan Huagong Genuine Optics Technology Co., Ltd

Address: Science & Technology Region of HUST, Donghu High-Tech Zone

Wuhan, Hubei Province, 430223, China

Tel: +86-27-87180102

Fax: +86-27-87180220

Email: market@genuine-opto.com

Website: http://www.genuine-opto.com
